Product Details
PRODUCT HIGHLIGHTS
- Product Highlights
- High removal efficiency: FOG and TSS removal rates exceed 95%, ensuring effective treatment of industrial wastewater.
- Microbubble technology: Generates bubbles between 30–70 microns, creating strong attachment with flocs to enhance flotation performance.
- Compact design: Occupies less space and offers higher treatment efficiency compared to conventional sedimentation tanks.
- Fully automatic operation: PLC intelligent control enables one-button start/stop, reducing labor costs
-

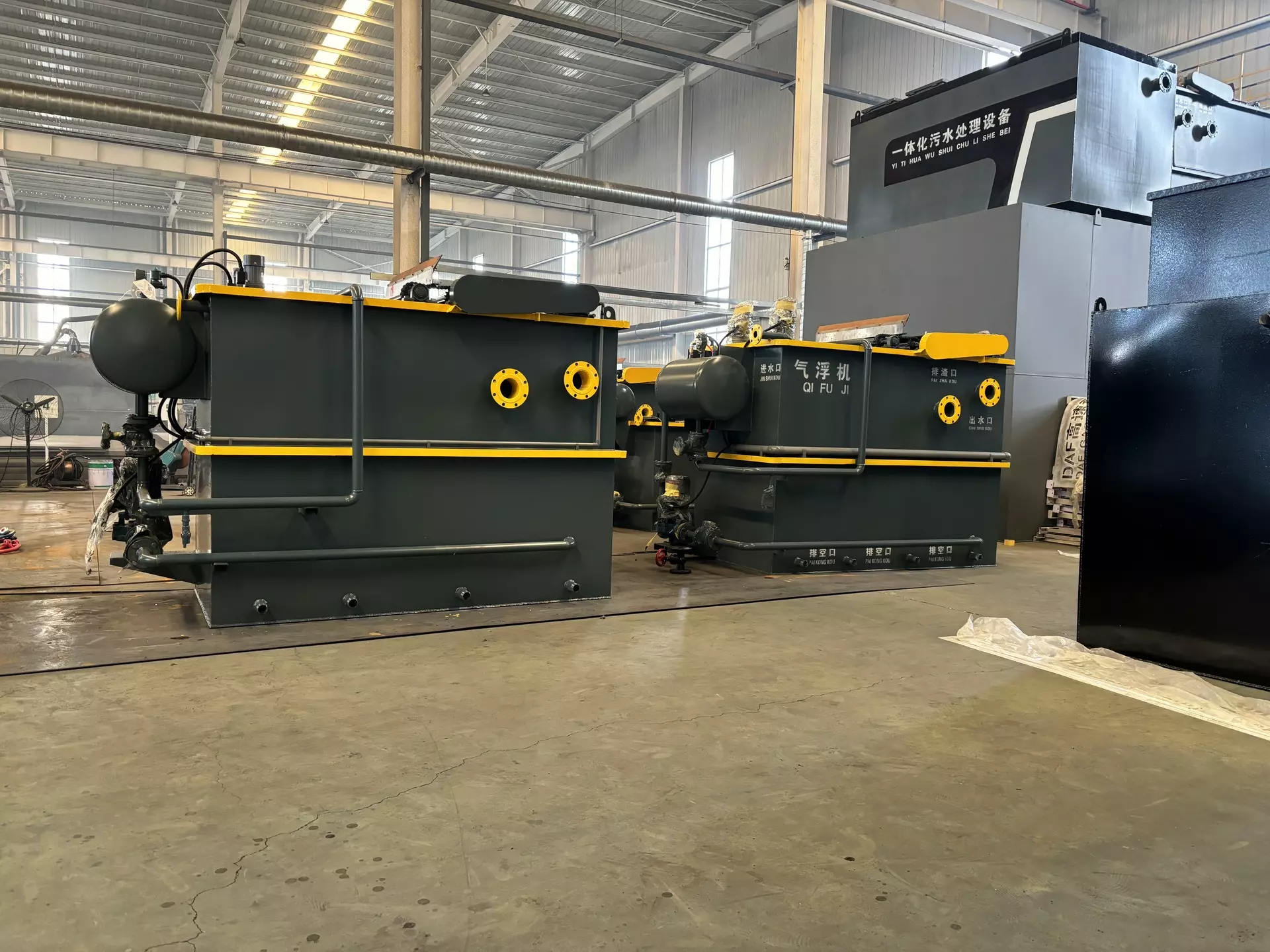

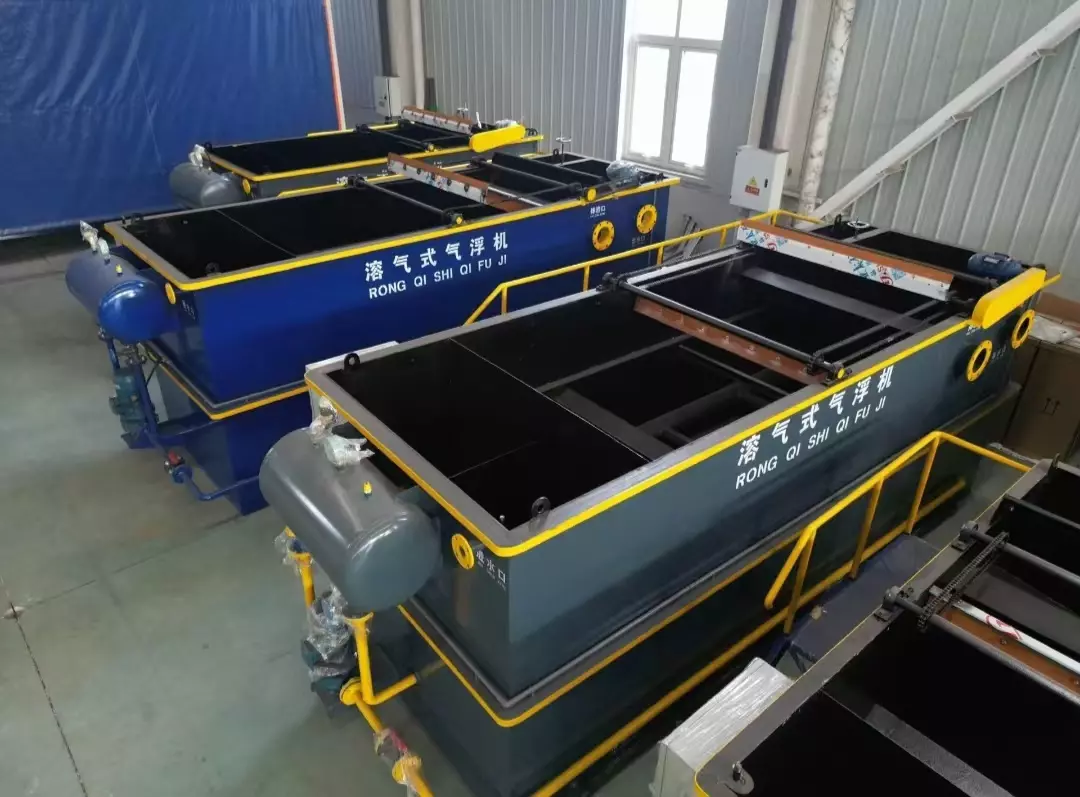

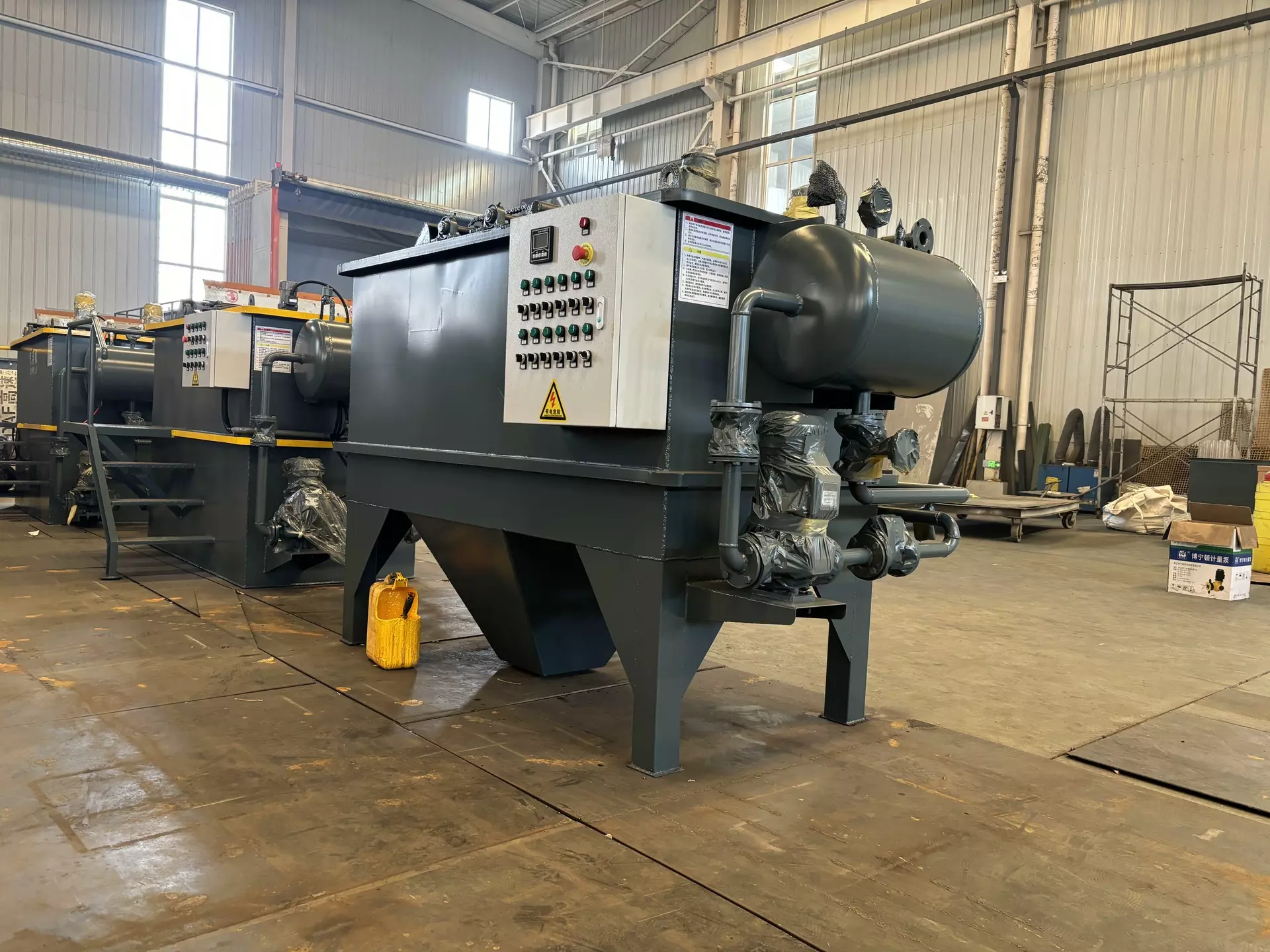

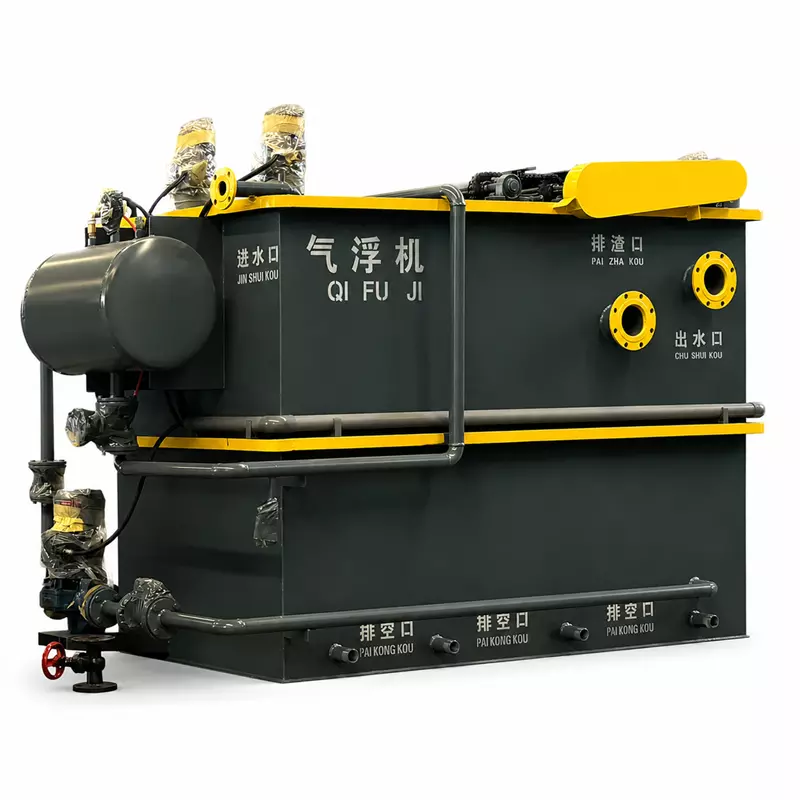

Dissolved Air Floatation Unit (Price includes 2 dosing systems)No.Capacity
(m³/h)Dimensions (m)Approximate weight （t）Sheet thicknessContainer tankHost Power (kW)Scraper
(kW)Air Compressor
(kW)Additional Pump for Tank (kW)10.52.0x1.2x1.50.43mmΦ=425，L=6504.20.751.1(30L)1.5kw21-22.5*1.7*1.80.553mmΦ=425，L=6504.20.751.1(30L)2.2333.0*1.7*1.80.654mmΦ=425，L=6504.20.751.1(30L)2.2453.5*1.7*1.80.74mmΦ=425，L=6504.20.751.1(30L)2.2584.5x1.8x2.11.24mmΦ=425，L=65050.751.1(30L)36105.0*2.2*2.21.555mmΦ=425，L=65050.751.1(30L)37156.0*2.2*2.21.755mmΦ=500，L=9006.20.751.1(30L)48206.5*2.2*2.11.975mmΦ=500，L=90070.751.6(30L)49307.0*2.6*2.32.35mmΦ=500，L=90080.751.6(30L)510408.2*2.7*2.336mmΦ=500，L=9008.850.751.6(30L)511508.7*2.7*2.33.26mmΦ=500，L=9008.850.751.6(30L)512609.3*2.7*2.33.36mmΦ=600，L=1200100.752.2(50L)5.513709.2*2.7*2.83.96mmΦ=600，L=1200111.52.2(50L)7.51410012*3.2*3.25.46mmΦ=600，L=1200111.52.2(50L)7.51512016*3.2*3.210.88mmΦ=1000，L=2000191.54（80L）111615017*3.7*3.212.38mmΦ=1000，L=2100241.55（100L）15The above includes one booster pump and standard piping fittings.
Optional extras: agitator for the chemical dosing zone; sludge scraper; chain; sludge scraper blade; material of the release
valve; material of the chemical dosing unit;
