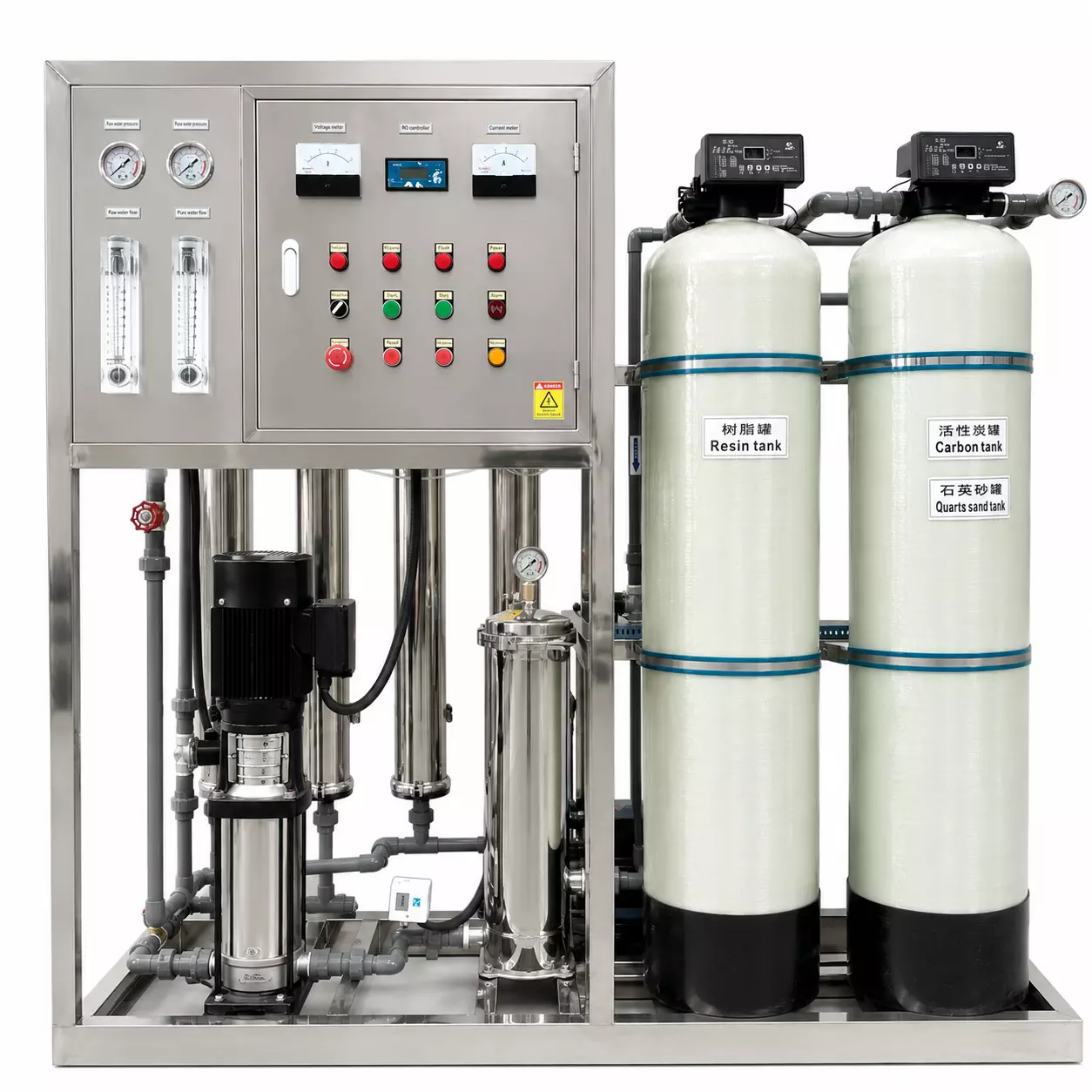

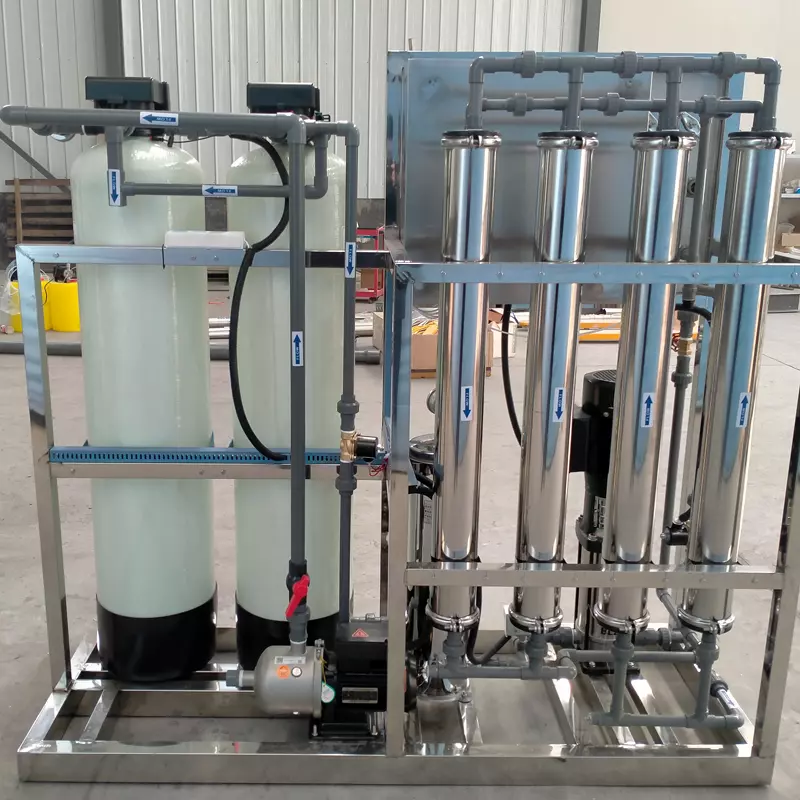

Product Details
PRODUCT HIGHLIGHTS
- Advanced Technology: Utilizes advanced technology for high efficiency and durability.
- Customized Solutions: Tailored to specific customer needs and site conditions.
- Modular Design: Easy to transport and install, saving time and effort.
- High Utilization: Optimized water distribution system ensures high tank space utilization.
- Reliable Quality: Rigorous pre-shipment checks guarantee reliable and long-lasting performance.
- Advanced Integrated Design: This highly integrated design significantly saves installation space and reduces civil engineering costs.
- Intelligent Automated Operation: Equipped with a PLC control system for 24/7 fully automated operation.
- High-Quality Components & Processes: Employs efficient MBR, AO, SBR, or MBBR technologies.
- Wide Applicability: Suitable for domestic sewage in residential areas, hotels, schools, food processing plants, slaughterhouses, agriculture, industry, and small communities.
|
Technical Parameters
|
Specifications/Details
|
Specifications/Details
|
Specifications/Details
|
Specifications/Details
|
Specifications/Details | Specifications/Details |
|
Product Water Flow
|
250L/H
|
500L/H
|
1000L/H
|
2000L/H
|
3000L/H
|
6000L/H
|
|

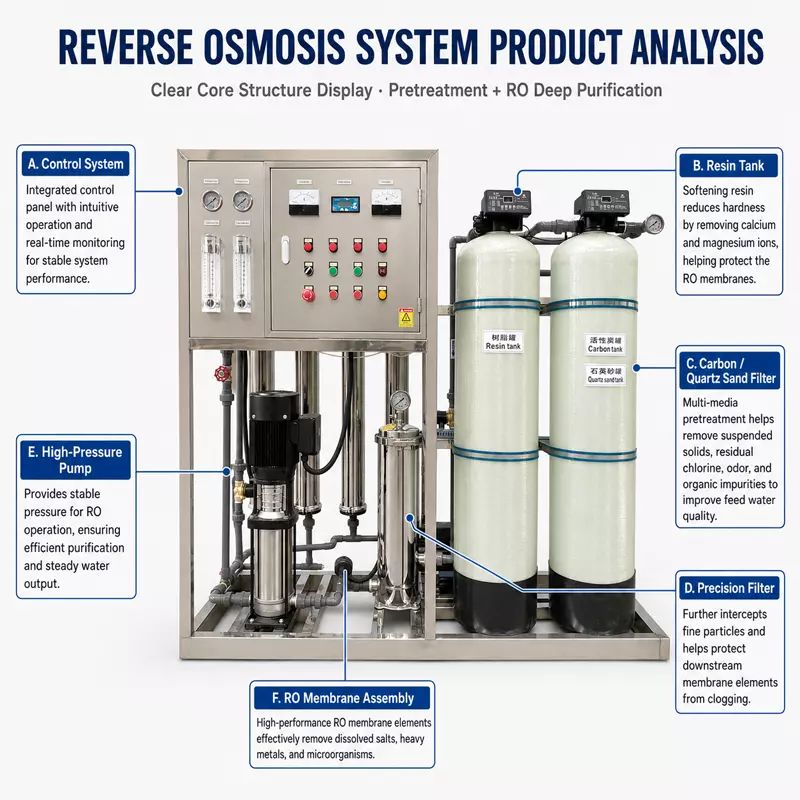

Raw Water Pump
|
Horizontal High-Efficiency Pump (CNP/NANBENG)
|
Horizontal High-Efficiency Pump (CNP/NANBENG)
|
Horizontal High-Efficiency Pump (CNP/NANBENG)
|
Horizontal High-Efficiency Pump (CNP/NANBENG)
|
Horizontal High-Efficiency Pump (CNP/NANBENG)
|
Horizontal High-Efficiency Pump (CNP/NANBENG)
|
|

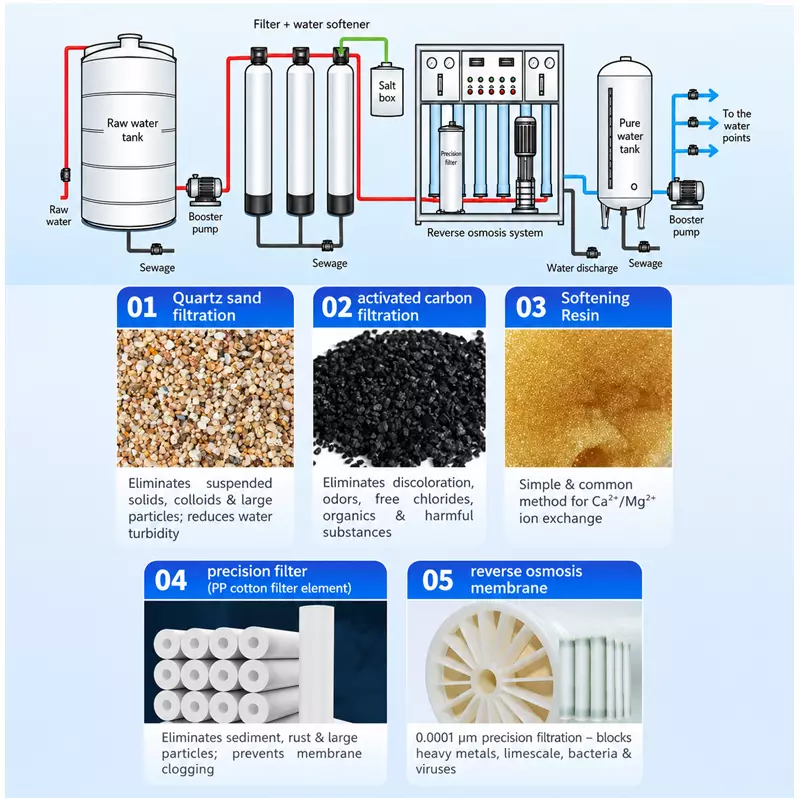

Pre-Treatment Filter
|
Quartz Sand + Activated Carbon (FRP Or 304)
|
Quartz Sand + Activated Carbon (FRP Or 304)
|
Quartz Sand + Activated Carbon (FRP Or 304)
|
Quartz Sand + Activated Carbon (FRP Or 304)
|
Quartz Sand + Activated Carbon (FRP Or 304)
|
Quartz Sand + Activated Carbon (FRP Or 304)
|
|
Scale Prevention System
|
Resin Or Antiscalant Dosing
|
Resin Or Antiscalant Dosing
|
Resin Or Antiscalant Dosing
|
Resin Or Antiscalant Dosing
|
Resin Or Antiscalant Dosing
|
Resin Or Antiscalant Dosing
|
|
Control Valve
|
Automatic Or Manual
|
Automatic Or Manual
|
Automatic Or Manual
|
Automatic Or Manual
|
Automatic Or Manual
|
Automatic Or Manual
|
|
Precision Filter
|
SUS304 Or FRP
|
SUS304 Or FRP
|
SUS304 Or FRP
|
SUS304 Or FRP
|
SUS304 Or FRP
|
SUS304 Or FRP
|
|
RO Membrane
|
1X4040High-Efficiency Membrane(Vontron/OVAY/YIRUI)
|
2X4040High-Efficiency Membrane(Vontron/OVAY/YIRUI)
|
4X4040High-Efficiency Membrane(Vontron/OVAY/YIRUI)
|
8X4040High-Efficiency Membrane(Vontron/OVAY/YIRUI)
|
12X4040High-Efficiency Membrane(Vontron/OVAY/YIRUI)
|
6X8040High-Efficiency Membrane(Vontron/OVAY/YIRUI)
|
|
Membrane Housing
|
1*4040-1（304 Or FRP, Designed Based On Water Quality）
|
2*4040-1（304 Or FRP, Designed Based On Water Quality）
|
4*4040-1（304 Or FRP, Designed Based On Water Quality）
|
4*4040-2（304 Or FRP, Designed Based On Water Quality）
|
6*4040-1（304 Or FRP, Designed Based On Water Quality）
|
2*8040-3（FRP, ）
|
|
High Pressure Pump
|
Vertical Multi-Stage Centrifugal Pump (CNP/NANBENG)
|
Vertical Multi-Stage Centrifugal Pump (CNP/NANBENG)
|
Vertical Multi-Stage Centrifugal Pump (CNP/NANBENG)
|
Vertical Multi-Stage Centrifugal Pump (CNP/NANBENG)
|
Vertical Multi-Stage Centrifugal Pump (CNP/NANBENG)
|
Vertical Multi-Stage Centrifugal Pump (CNP/NANBENG)
|
|
Total Rated Power
|
1.5KW
|
1.5KW
|
2KW
|
3KW
|
4KW
|
8KW
|
|
Control System
|
|
|
|
|
PLC Control (Siemens) - Optional
|
PLC Control (Siemens) - Optional
|
|
Working Pressure
|
0.5-1MPA
|
0.5-1MPA
|
0.5-1MPA
|
0.5-1MPA
|
0.5-1MPA
|
0.7-1MPA
|
|
Overall Dimensions:
|
1650X650X1650Mm(Length X Width X Height)
|
1650X650X1650Mm(Length X Width X Height)
|
1850X650X1650Mm(Length X Width X Height)
|
2700X650X1650Mm(Length X Width X Height)
|
2700X650X1650Mm(Length X Width X Height)
|
4000X850X2050Mm(Length X Width X Height)
|
|
Piping And Valves
|
Premium Industrial Grade U-PVC Or SUS304 Stainless Steel (Optional)
|
Premium Industrial Grade U-PVC Or SUS304 Stainless Steel (Optional)
|
Premium Industrial Grade U-PVC Or SUS304 Stainless Steel (Optional)
|
Premium Industrial Grade U-PVC Or SUS304 Stainless Steel (Optional)
|
Premium Industrial Grade U-PVC Or SUS304 Stainless Steel (Optional)
|
Premium Industrial Grade U-PVC Or SUS304 Stainless Steel (Optional)
|
